Pipe Bridge and High Integrity Pipelines

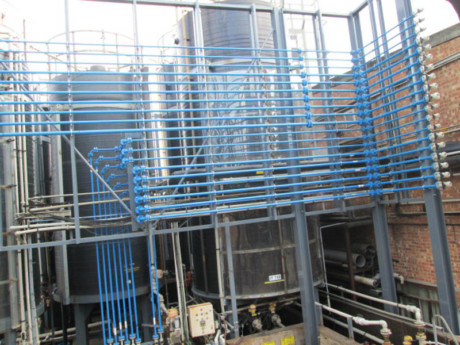

Pipe bridge with high integrity pipelines at Vale (Europe) Limited

HEES have recently designed and installed 19 PTFE lined carbon steel pipelines together with an 8 metre tall support structure.

The collection of 63, 50 & 40 mm nominal bore high integrity pipelines transport chemicals some 22 metres across a roadway and a roof to enable the linking of process buildings and storage tanks at Vale (Europe) Limited.

Each end of the line terminates with an isolation valve and those serving the tank farm have low level drain points.
